Last Update
03.02.2025
Configuration-Code NF84FX2_16
Code number 105G5913 105G5918
Type designation NF8.4FX.2 NF8.4FX.2
Product status 同系統品を製造中 製造中
Data Sheet Download Download
Setup
Polynomial NF84FX2_16
Voltage range [V … V] 95 … 135
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R134a
Specials Tropical use recommended yes
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability no
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s)

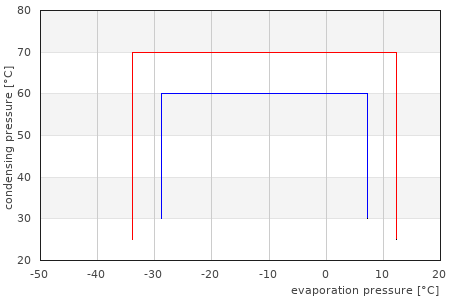

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 221 | 755 484 | 1653 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.94 | 3.2 1.43 | 4.9 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 302 | 1031 622 | 2124 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.22 | 4.2 1.72 | 5.9 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 150 | 512 543 | 1854 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.83 | 2.8 1.69 | 5.8 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 251 | 857 587 | 2005 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.01 | 3.4 1.68 | 5.7 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 340 | 1161 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.39 | 4.7 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 316 | 1079 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.35 | 4.6 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 283 | 966 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
