Last Update
03.02.2025
Configuration-Code SC15MLX16
Code number 104L1805
Type designation SC15MLX
Product status Production - Active
Data Sheet Download
Setup
Polynomial SC15MLX16
Voltage range [V … V] 95 … 135
Frequency 60
High starting torque yes
Run capacitor no
Motor speed [rpm] 3500
Variable speed no
Refrigerant R404A
Specials Tropical use recommended yes
Heavy duty pull down capability yes
Mobile operation possible no
Hot gas defrost capability yes
Cooling Required cooling Max. ambient temp.: 43°C F2 (fan 3m/s)

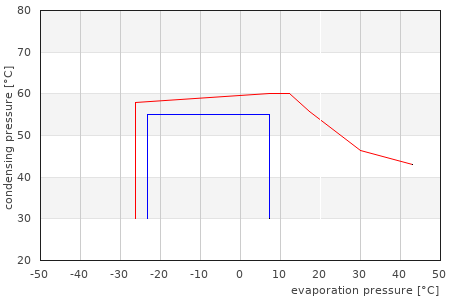

Operation limits diagram = short = continuous
CECOMAF CECOMAF ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 532 | 1817 1113 | 3801 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.78 | 2.7 1.11 | 3.8 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 789 | 2694 1504 | 5136 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.1 | 3.8 1.4 | 4.8 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 470 | 1605 1318 | 4501 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.83 | 2.8 1.39 | 4.7 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 601 | 2052 1367 | 4668 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.82 | 2.8 1.33 | 4.5 n/a | n/a
AHAM AHAM ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 933 | 3186 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.28 | 4.4 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 883 | 3015 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.27 | 4.3 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a 762 | 2602 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.08 | 3.7 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP
Cooling capacity [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a
