letzte Aktualisierung
03.02.2025
Konfigurations-Code NF61FX2_16
Bestellnummer 105G5631 105G5638
Typenbezeichnung NF6.1FX.2 NF6.1FX.2
Produkt Status Produktion - aktiv Produktion - Variante
Datenblatt Download Download
Konfiguration
Polynom NF61FX2_16 NF61FX2_16_513
Spannungsbereich 95 … 135 95 … 135
Frequenz 60 60
hohes Startmoment ja ja
Betriebskondensator nein nein
Motordrehzahl (UpM) 3500 3500
drehzahlgeregelt nein nein
Kältemittel R134a R513A
Besonderheiten tropische Anwendung empfohlen ja ja
Schwerlast Pull Down möglich ja ja
mobiler Betrieb möglich nein nein
Heiß-Gas Abtauung möglich nein nein
Kühlung erforderliche Kühlung d. Verdichters Max. ambient temp.: 43°C F1 (fan 1.5m/s) Max. ambient temp.: 43°C F1 (fan 1.5m/s)

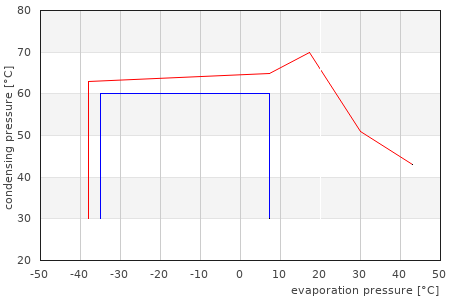

Anwendungsdiagramm = kurz = fortlaufend
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 153 | 522 352 | 1202 n/a | n/a n/a | n/a 164 | 560 365 | 1246 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.9 | 3.1 1.47 | 5 n/a | n/a n/a | n/a 0.89 | 3 1.43 | 4.9 n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 211 | 721 455 | 1554 n/a | n/a n/a | n/a 233 | 796 477 | 1629 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.19 | 4.1 1.78 | 6.1 n/a | n/a n/a | n/a 1.21 | 4.1 1.76 | 6 n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 100 | 342 398 | 1359 n/a | n/a n/a | n/a 112 | 382 416 | 1421 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.76 | 2.6 1.74 | 5.9 n/a | n/a n/a | n/a 0.78 | 2.7 1.71 | 5.8 n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 177 | 604 431 | 1472 n/a | n/a n/a | n/a 187 | 639 444 | 1516 n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1 | 3.4 1.74 | 5.9 n/a | n/a n/a | n/a 0.97 | 3.3 1.69 | 5.8 n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 243 | 830 n/a | n/a n/a | n/a n/a | n/a 266 | 908 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a n/a | n/a 1.4 | 4.8 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 225 | 768 n/a | n/a n/a | n/a n/a | n/a 246 | 840 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.33 | 4.5 n/a | n/a n/a | n/a n/a | n/a 1.35 | 4.6 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 200 | 683 n/a | n/a n/a | n/a n/a | n/a 218 | 744 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.18 | 4 n/a | n/a n/a | n/a n/a | n/a 1.19 | 4.1 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
