letzte Aktualisierung
03.02.2025
Konfigurations-Code NLE11CNL_16-REV3
Bestellnummer 105H5981 105H5983 105H5986
Typenbezeichnung NLE11CNL NLE11CNL NLE11CNL
Produkt Status Produktion - aktiv Produktion - Variante Produktion - Variante
Datenblatt Download Download Download
Konfiguration
Polynom NLE11CNL_16-REV3 NLE11CNL_16RC-REV3
Spannungsbereich 95 … 135 95 … 135
Frequenz 60 60
hohes Startmoment ja nein
Betriebskondensator nein ja
Motordrehzahl (UpM) 3500 3500
drehzahlgeregelt nein nein
Kältemittel R290 R290
Besonderheiten tropische Anwendung empfohlen ja ja
Schwerlast Pull Down möglich nein nein
mobiler Betrieb möglich nein nein
Heiß-Gas Abtauung möglich ja ja
Kühlung erforderliche Kühlung d. Verdichters Max. ambient temp.: 43°C F2 (fan 3m/s) Max. ambient temp.: 43°C F2 (fan 3m/s)

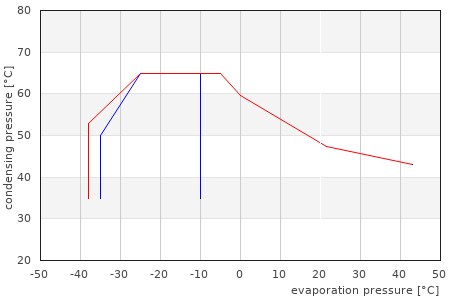

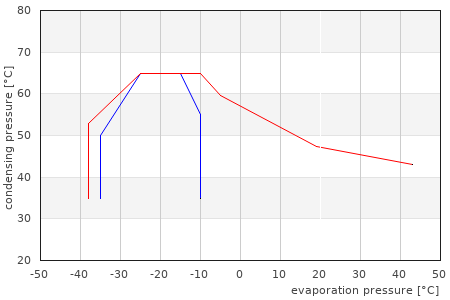

Anwendungsdiagramm = kurz = fortlaufend
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 502 | 1714 n/a | n/a n/a | n/a n/a | n/a 513 | 1752 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.26 | 4.3 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 671 | 2291 n/a | n/a n/a | n/a n/a | n/a 685 | 2339 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.62 | 5.5 n/a | n/a n/a | n/a n/a | n/a 1.77 | 6 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 384 | 1311 n/a | n/a n/a | n/a n/a | n/a 384 | 1311 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.29 | 4.4 n/a | n/a n/a | n/a n/a | n/a 1.38 | 4.7 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 543 | 1854 n/a | n/a n/a | n/a n/a | n/a 552 | 1885 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.46 | 5 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 723 | 2469 n/a | n/a n/a | n/a n/a | n/a 727 | 2483 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.89 | 6.5 n/a | n/a n/a | n/a n/a | n/a 2.03 | 6.9 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 677 | 2312 n/a | n/a n/a | n/a n/a | n/a 685 | 2339 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.9 | 6.5 n/a | n/a n/a | n/a n/a | n/a 2.05 | 7 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 614 | 2097 n/a | n/a n/a | n/a n/a | n/a 618 | 2110 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.64 | 5.6 n/a | n/a n/a | n/a n/a | n/a 1.76 | 6 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
