letzte Aktualisierung
03.02.2025
Konfigurations-Code SC10CL25
Bestellnummer 104L2523
Typenbezeichnung SC10CL
Produkt Status Produktion - aktiv
Datenblatt Download
Konfiguration
Polynom SC10CL25 SC10CL25_452
Spannungsbereich 198 … 254 198 … 254
Frequenz 50 50
hohes Startmoment ja ja
Betriebskondensator nein nein
Motordrehzahl (UpM) 2900 2900
drehzahlgeregelt nein nein
Kältemittel R404A R452A
Besonderheiten tropische Anwendung empfohlen nein nein
Schwerlast Pull Down möglich ja ja
mobiler Betrieb möglich nein nein
Heiß-Gas Abtauung möglich ja ja
Kühlung erforderliche Kühlung d. Verdichters Max. ambient temp.: 38°C F2 (fan 3m/s) Max. ambient temp.: 38°C F2 (fan 3m/s)

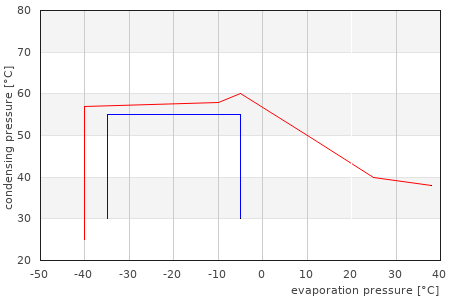

Anwendungsdiagramm = kurz = fortlaufend
CECOMAF CECOMAF ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 261 | 891 n/a | n/a n/a | n/a n/a | n/a 240 | 820 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.79 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.77 | 2.6 n/a | n/a n/a | n/a
ASHRAE ASHRAE ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 400 | 1366 n/a | n/a n/a | n/a n/a | n/a 365 | 1246 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.09 | 3.7 n/a | n/a n/a | n/a
EN12900 EN12900 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 197 | 673 n/a | n/a n/a | n/a n/a | n/a 177 | 604 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.79 | 2.7 n/a | n/a n/a | n/a n/a | n/a 0.76 | 2.6 n/a | n/a n/a | n/a
ARI540 ARI540 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 311 | 1062 n/a | n/a n/a | n/a n/a | n/a 288 | 984 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 0.85 | 2.9 n/a | n/a n/a | n/a n/a | n/a 0.84 | 2.9 n/a | n/a n/a | n/a
AHAM AHAM ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 498 | 1701 n/a | n/a n/a | n/a n/a | n/a 458 | 1564 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.34 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.31 | 4.5 n/a | n/a n/a | n/a
VSD_opt1 VSD_opt1 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 471 | 1608 n/a | n/a n/a | n/a n/a | n/a 433 | 1479 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.35 | 4.6 n/a | n/a n/a | n/a n/a | n/a 1.31 | 4.5 n/a | n/a n/a | n/a
VSD_opt2 VSD_opt2 ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a 397 | 1356 n/a | n/a n/a | n/a n/a | n/a 365 | 1246 n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a 1.13 | 3.9 n/a | n/a n/a | n/a n/a | n/a 1.1 | 3.8 n/a | n/a n/a | n/a
lowTemp lowTemp ULT LBP MBP HBP ULT LBP MBP HBP
Kälteleistung [W | Btu/h] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
COP | EER [W/W | Btu/Wh] n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a n/a | n/a
