NLV-CN Compressors for R290 (Propane)
Secop’s variable speed NLV-CN propane compressor solution provides perfect cooling efficiency in a single unit, tailor-made features, and easy integration while ensuring considerable energy savings.
-
Data Sheets
-
Technical Details N-Series
-
NextGen Controllers Video
Secop Variable-Speed Propane Compressors for Light Commercial Refrigeration
The NLV-CN compressor is the right choice if you are looking for high efficiency and a green solution using the environmentally friendly refrigerant propane (R290) with a low global warming potential (GWP 3).

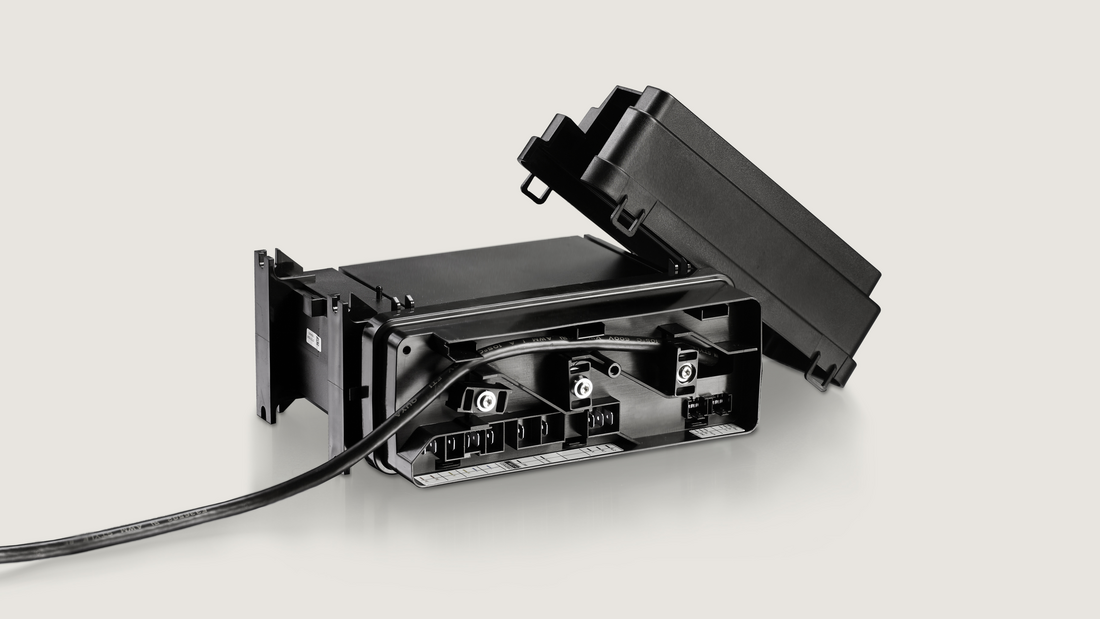

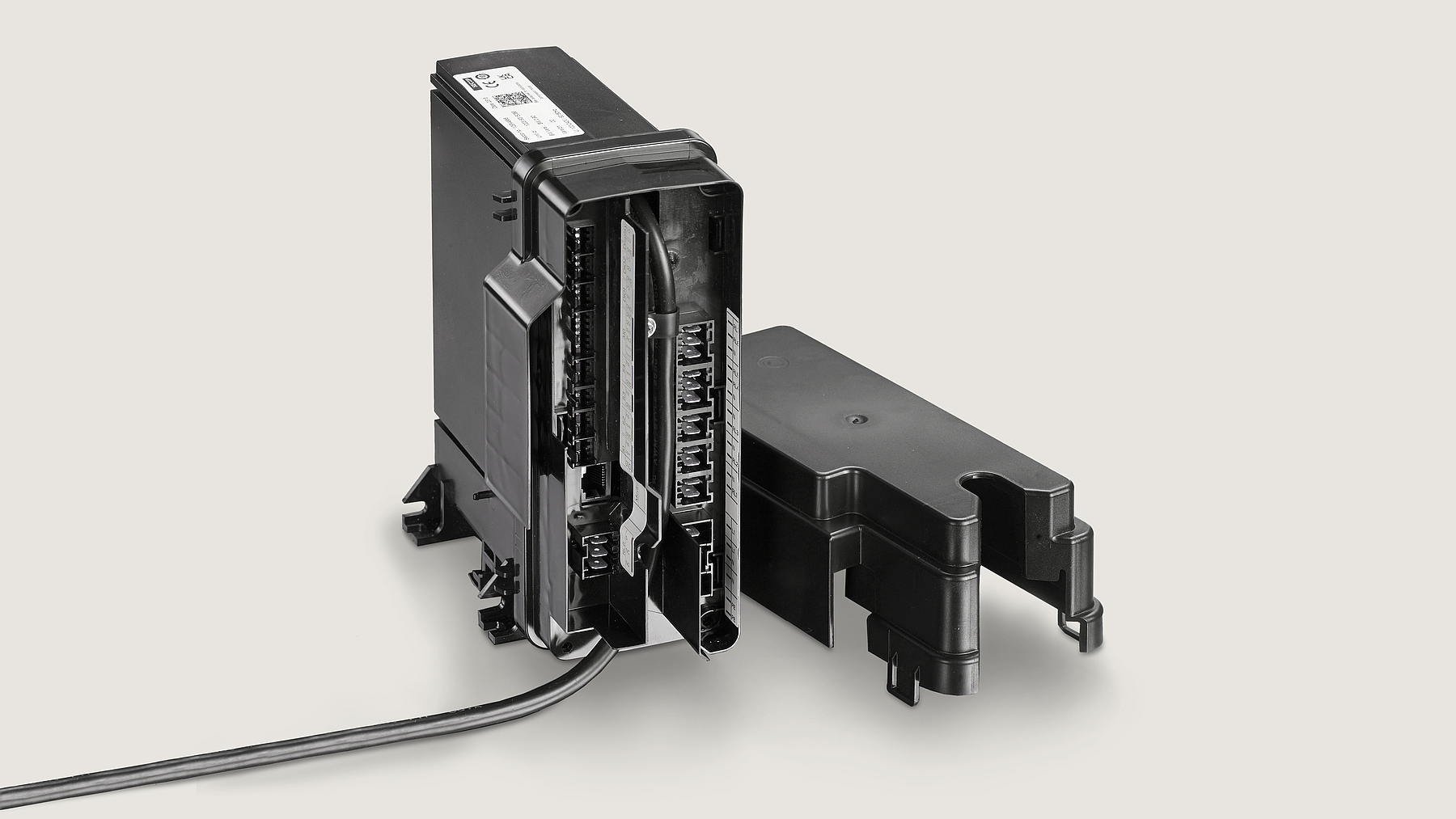

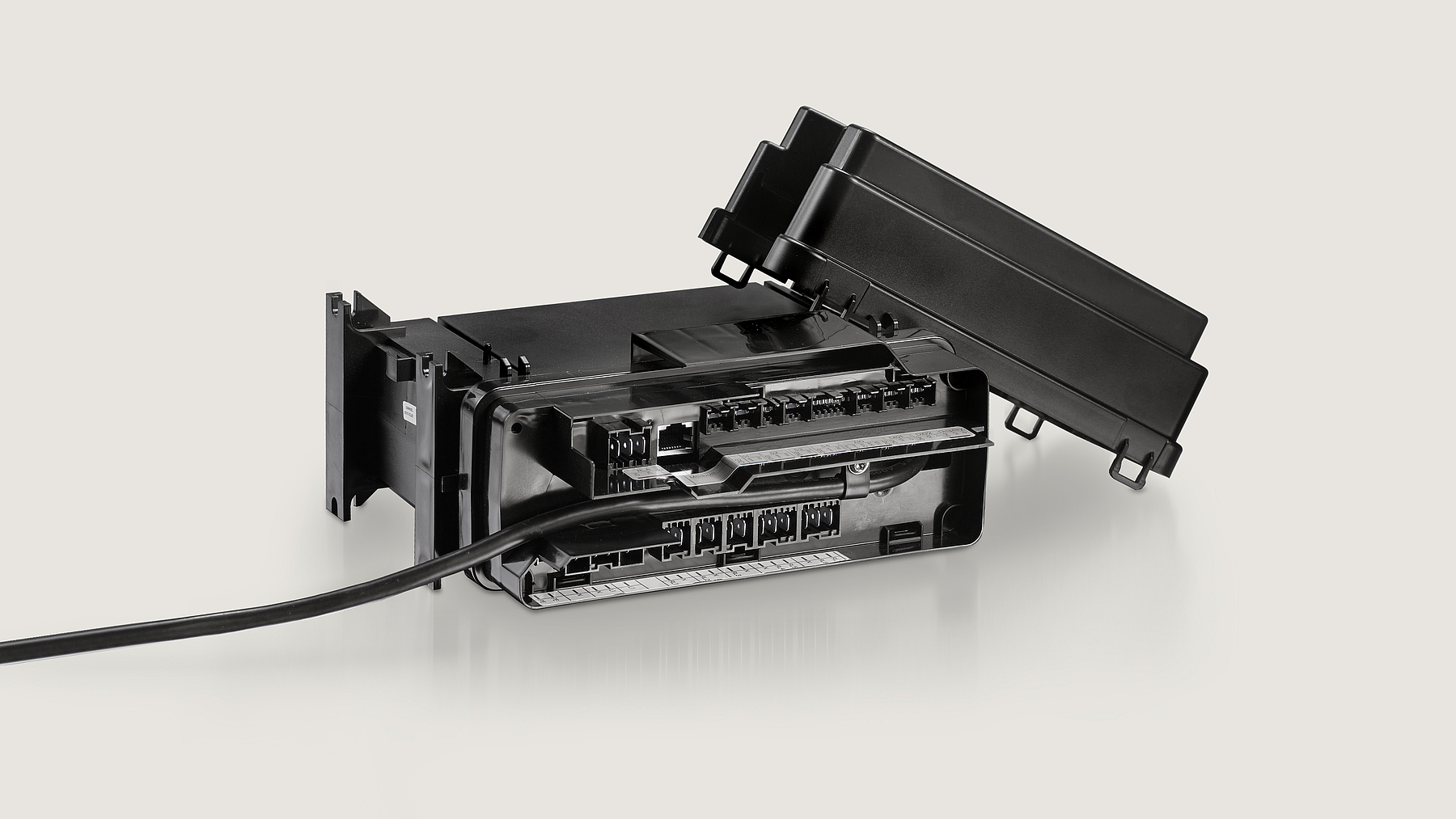

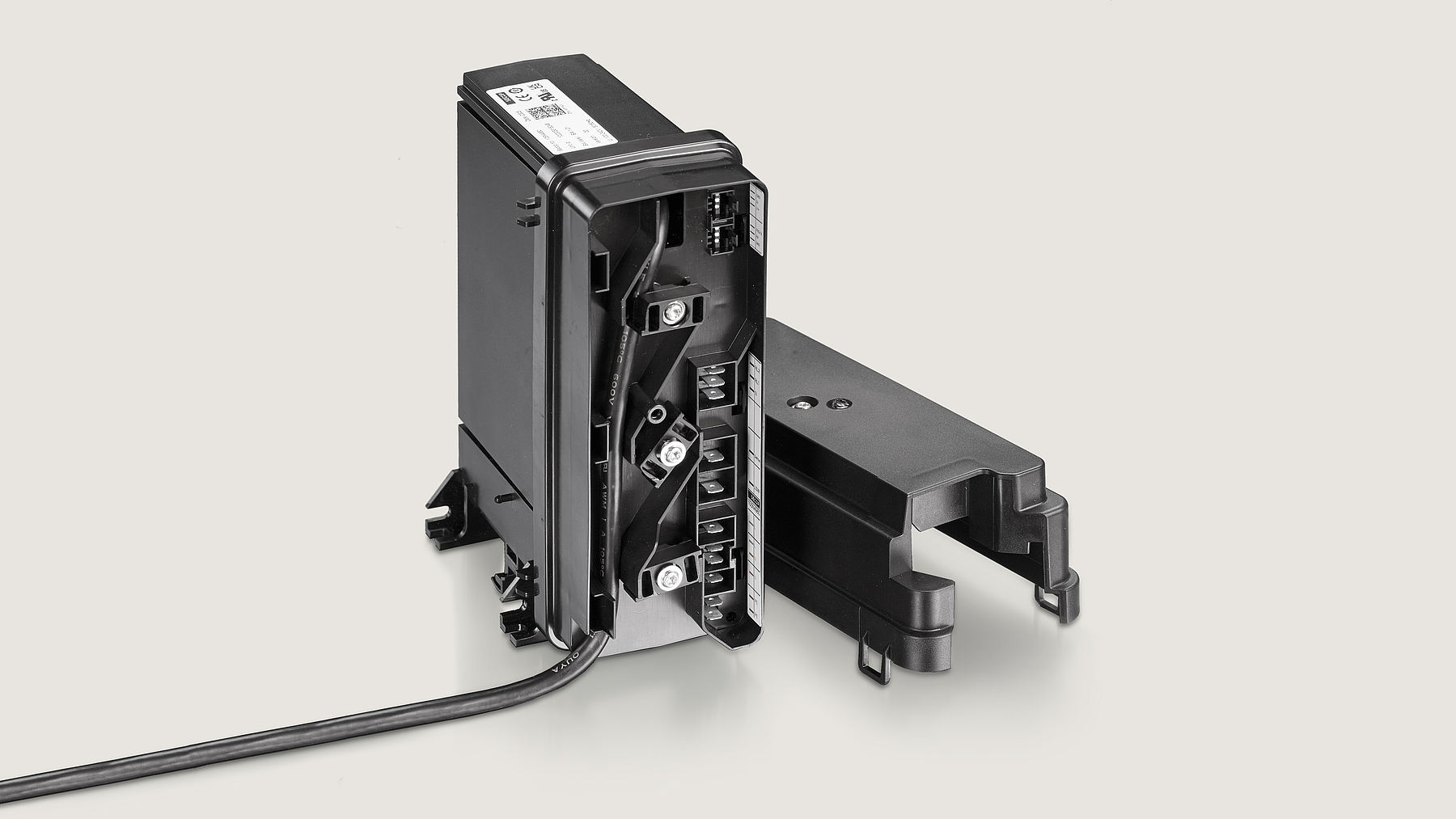

The °CCD (Cool Capacity Drive) controller features a high IP54 protection class and easy integration by using speed control through adaptive energy optimization (AEO), frequency signal, or serial communication. The controller also provides a high starting torque (HST) and can start against differential pressure.
Only the variable-speed design can obtain energy savings of up to 40% when compared to fixed-speed compressors in on/off operation mode.
The new 105N4960, 105N4962, and 105N4866 °CCD controllers with their wide operating voltage range can be used for all voltages and frequencies globally.

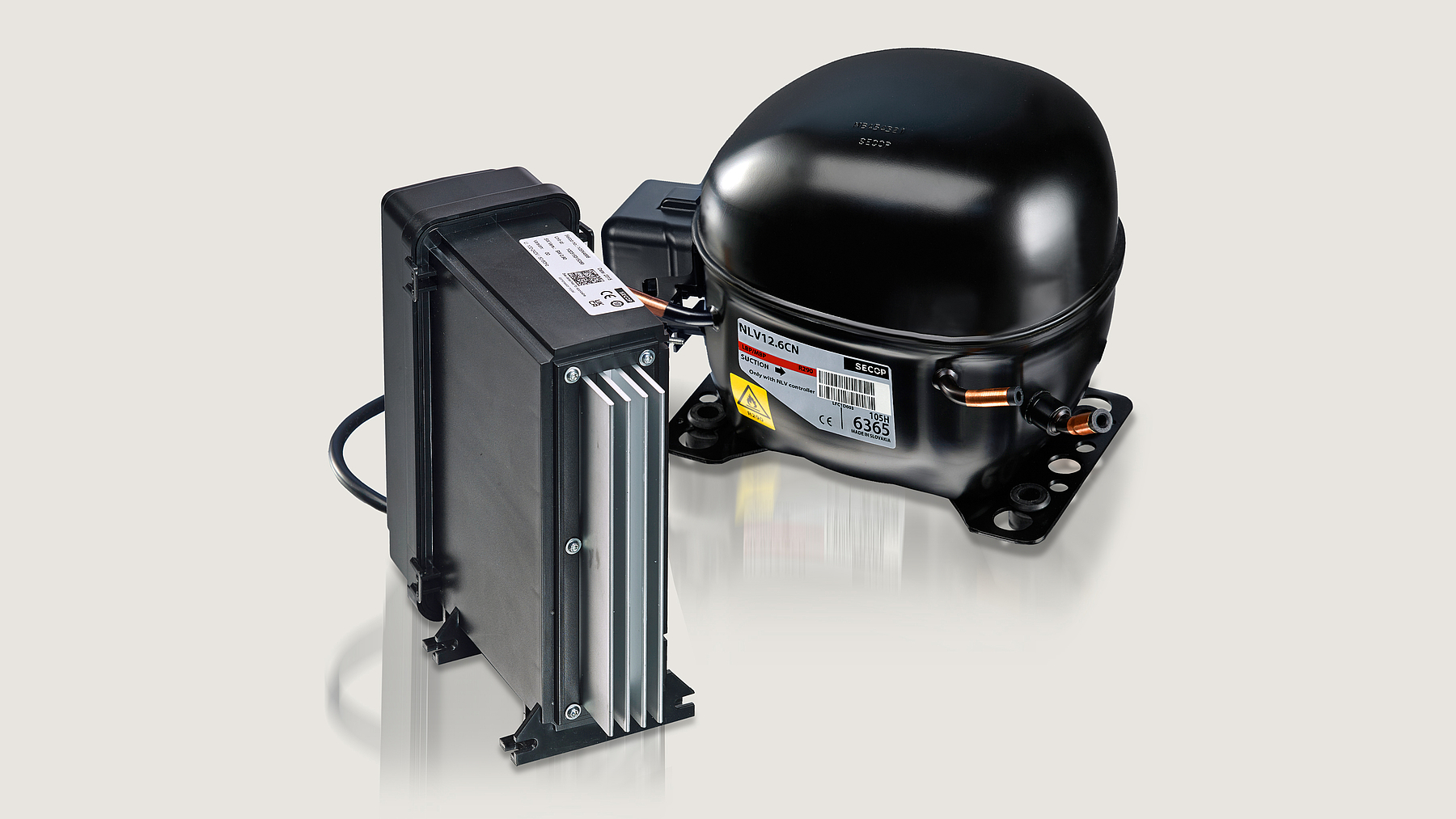

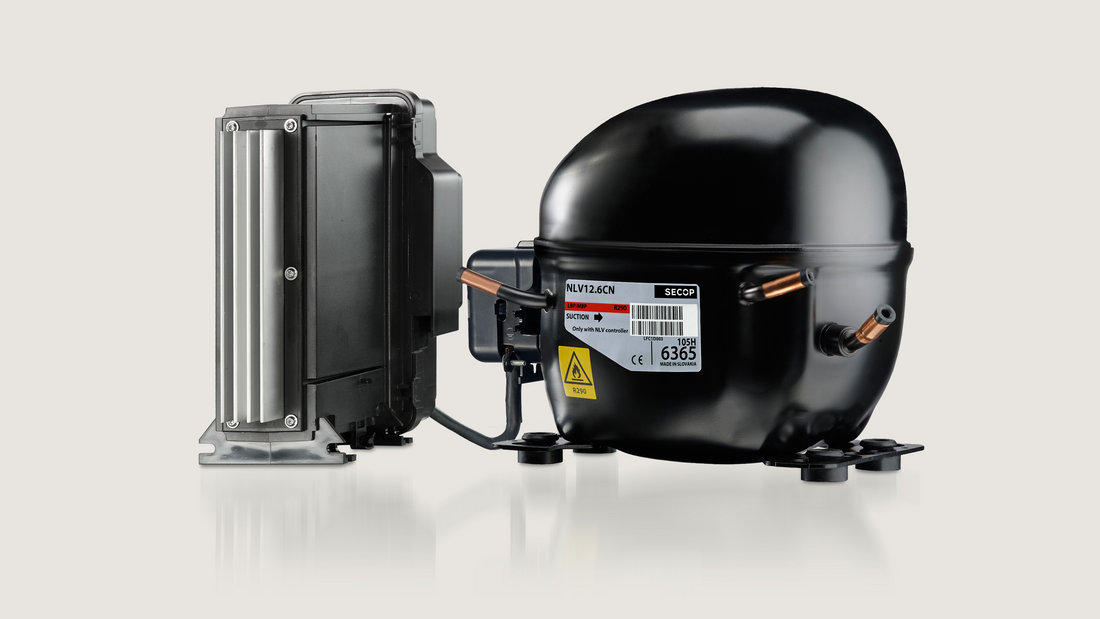

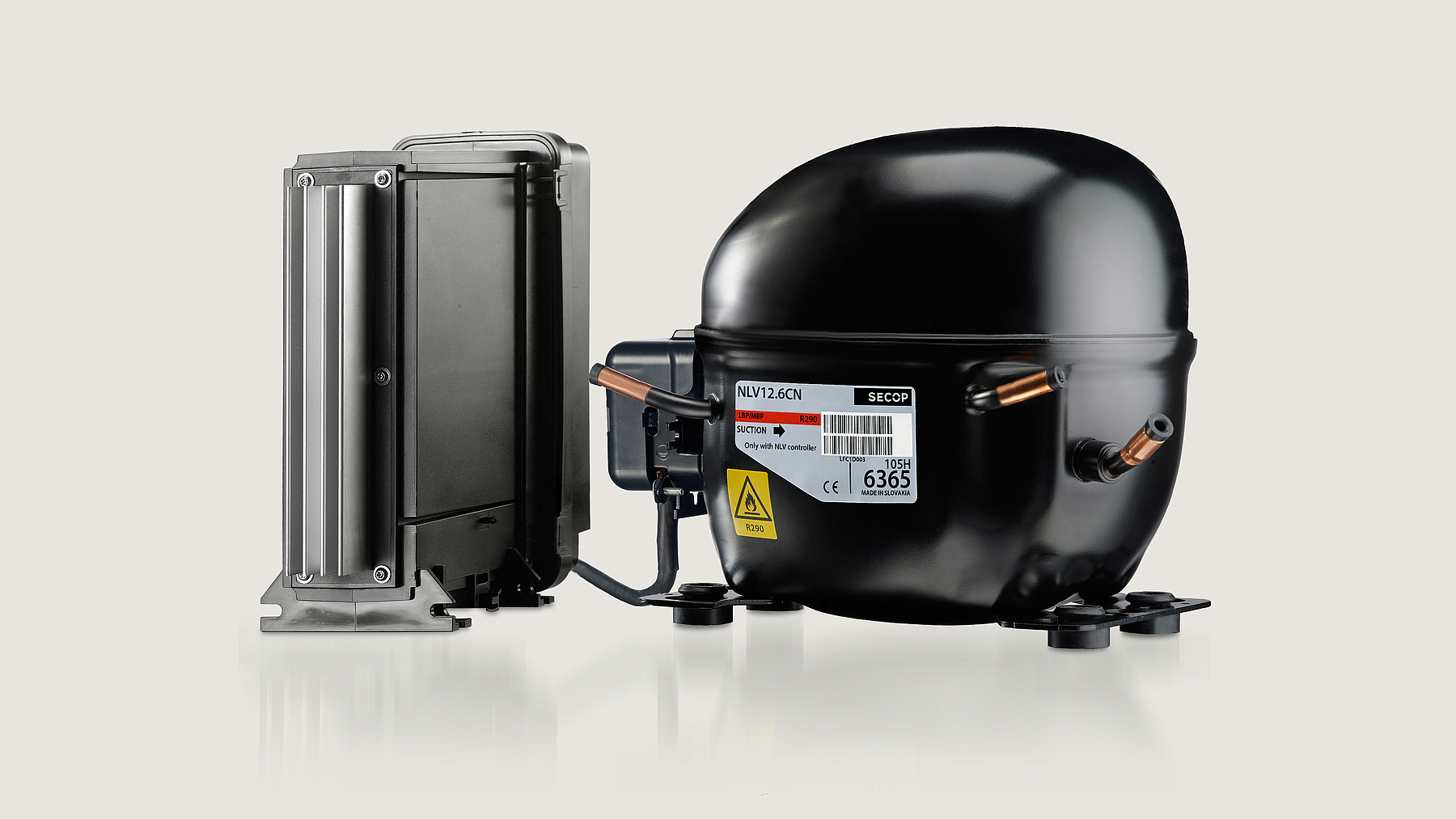

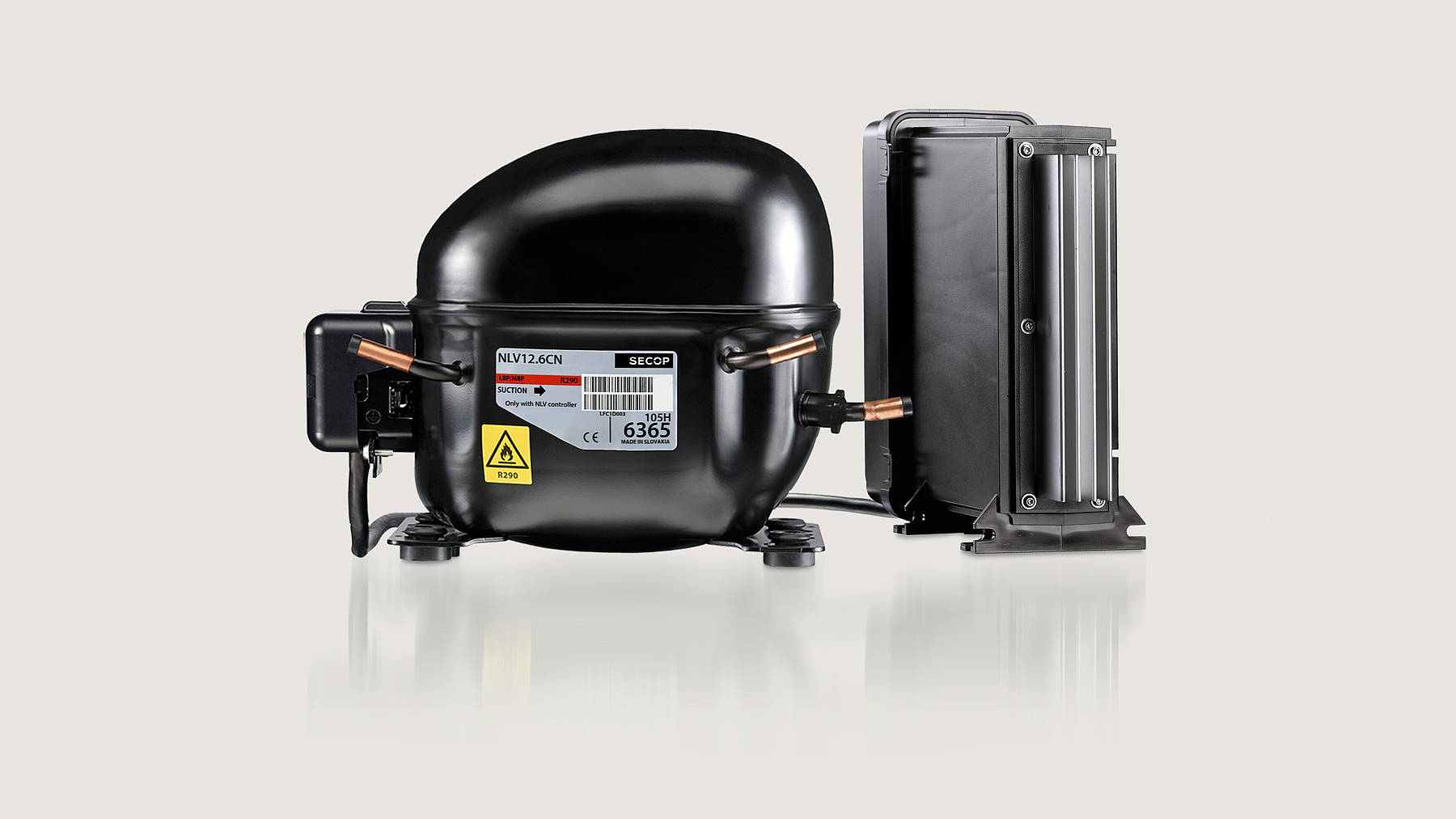

NLV Compressors and °CCD Controllers
- 105N4960 Multi voltage controller, Multipurpose, 100-240 V, 50/60 Hz
- 105N4962 Multi voltage controller Multipurpose (US GFCI-Conformity),
100-240 V, 50/60 Hz - 105N4910 Standard controller, Multipurpose, 220-240 V, 50/60 Hz
- 105N4866 Multi voltage controller, Extended, 100-240 V, 50/60 Hz
- 105H7808 NLV8.0CN compressor with metric connectors
- 105H7809 NLV8.0CN compressor with inch connectors
- 105H7003 NLV10CN compressor with metric connectors
- 105H7004 NLV10CN compressor with inch connectors

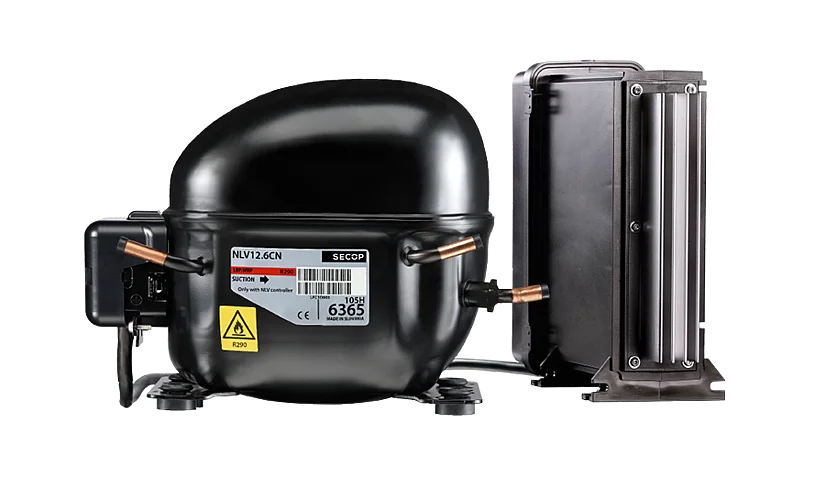

- 105H6365 NLV12.6CN compressor with metric connectors
- 105H6366 NLV12.6CN compressor with inch connectors
Benefits NLV with MP (Multipurpose) Controller
- Energy savings of up to 40% compared to a fixed speed R404A compressor
- Suitable for both LBP and MBP applications and able to operate continuously inside an evaporating temp. range from -40 to +7.2°C
- Intelligent variable-speed drive controller with automatic input detection and IP54 housing provides a high starting torque and can start against a high differential pressure
- 2 additional relay outputs for case control
- 2–speed defrost control
- Easy customization via Tool4Cool®
Benefits NLV with XT (Extended) Controller
- Energy savings of up to 40% compared to a fixed speed R404A compressor
- Suitable for both LBP and MBP applications and able to operate continuously inside an evaporating temp. range from -40 to +7.2°C
- Intelligent variable-speed drive controller with automatic input detection and IP43 housing provides a high starting torque and can start against a high differential pressure
- 8 additional relay outputs for case control
- 2–speed defrost control
- 4 temperature sensors and 4 digital/analog I/O
- Easy customization via Tool4Cool®
Chillventa 2024 Interview

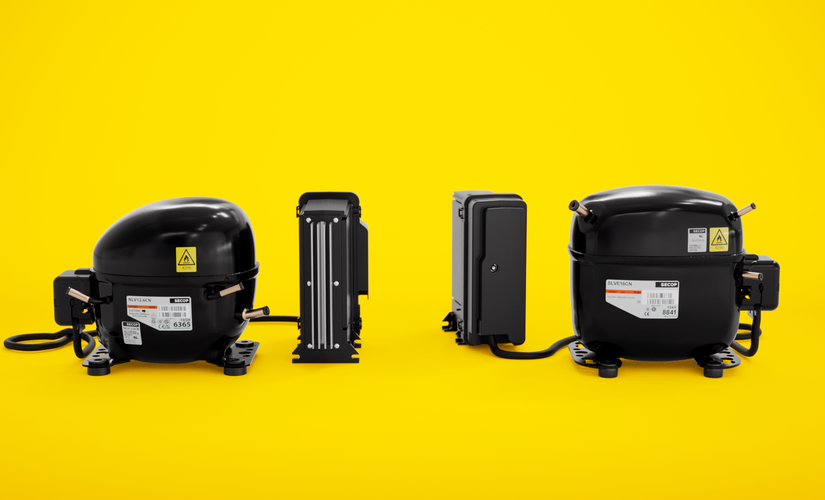

Thies Möller, our Product Manager for Electronic Controllers, presents the latest Variable-Speed Solutions showcased at Chillventa 2024. Highlights include the NLV15CN, a durable propane compressor, and a new range of electronic controllers: the Basic (BC), the Multipurpose (MP), and the top-tier Extended (XT). With this comprehensive offering, Secop aims to meet the diverse needs of customers in the Food Retail, Food Service, and Medical markets. We are driving the shift toward high-efficiency solutions. Secop – Sustainable Cooling Solutions!
Technical Literature
-
NLV-CN Compressors, R290, 100-240 V, 220-240 V, 50/60 Hz, Multipurpose Controllers
Download (675.05 KB) -
NLV-CN Compressors, R290, 100-240 V, 50/60 Hz, Extended Controllers
Download (695.74 KB) -
NLV-CN Compressors – 105N4910 (220-240 V, 50/60 Hz), 105N4960/4962 (100-240 V, 50/60 Hz) Multipurpose Controllers
Download (7.74 MB) -
NLV-CN Compressors – 105N4866 (100-240 V, 50/60 Hz) Extended Controllers
Download (21.58 MB) -
Next-Generation Modular Electronic Controllers
Download (290.59 KB)
